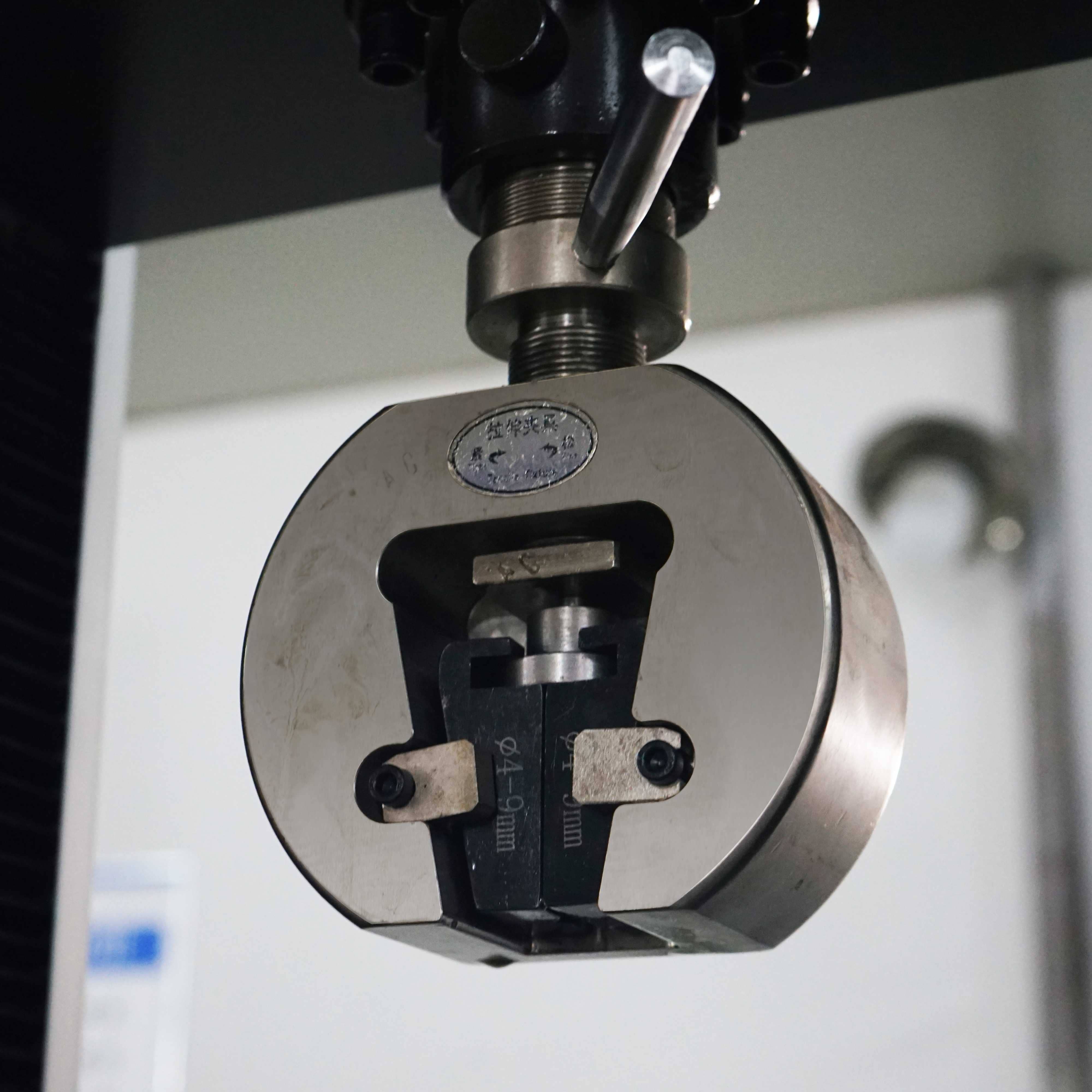

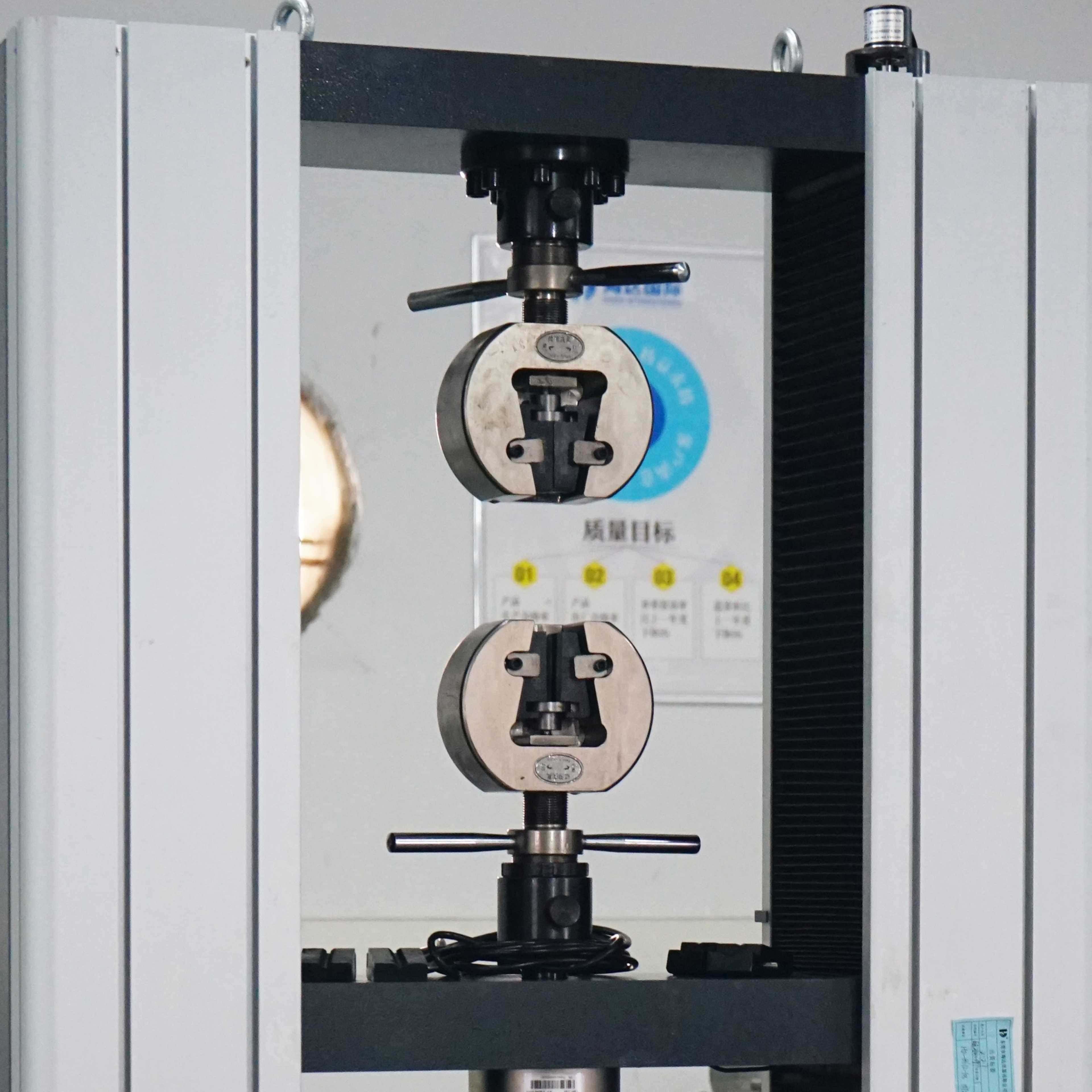

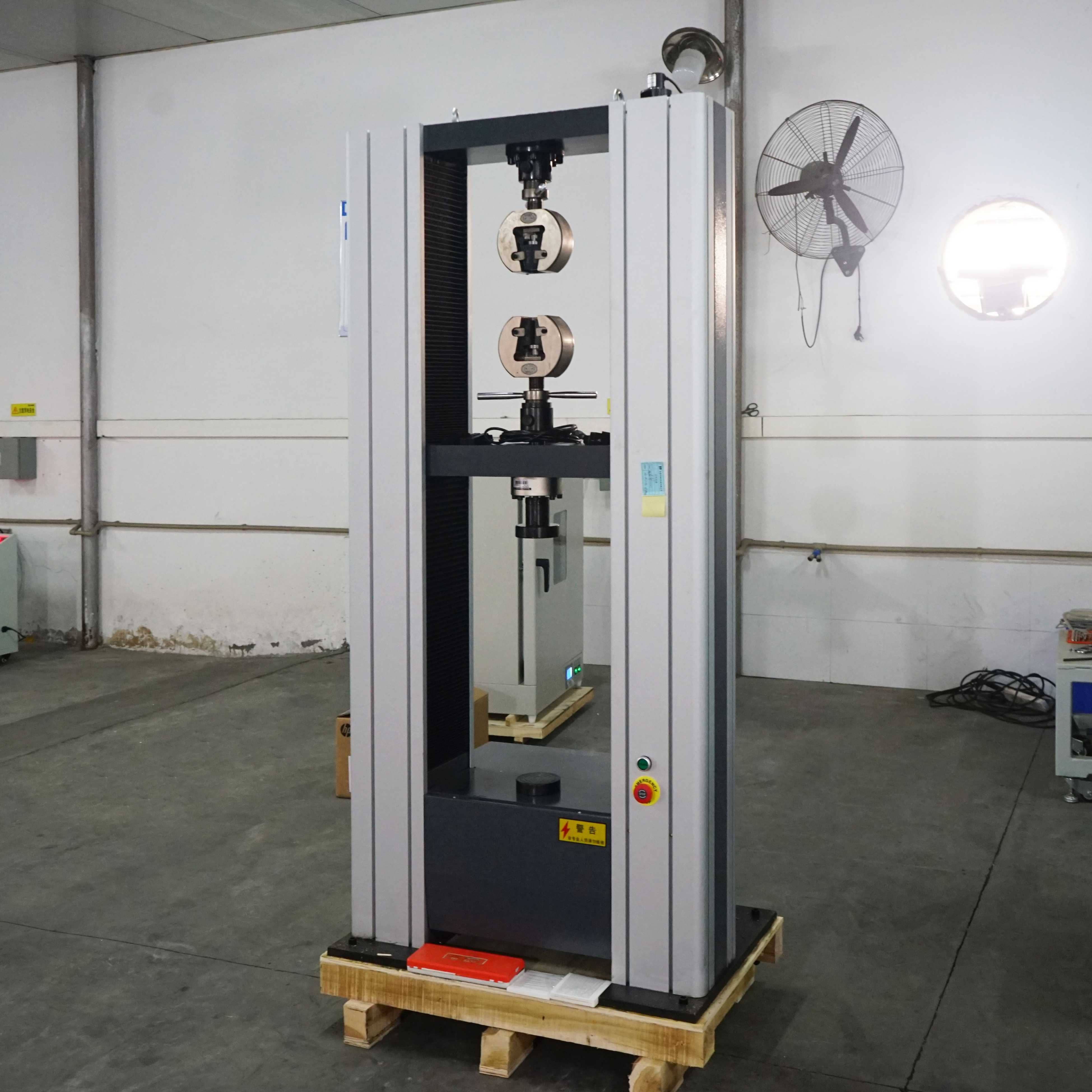

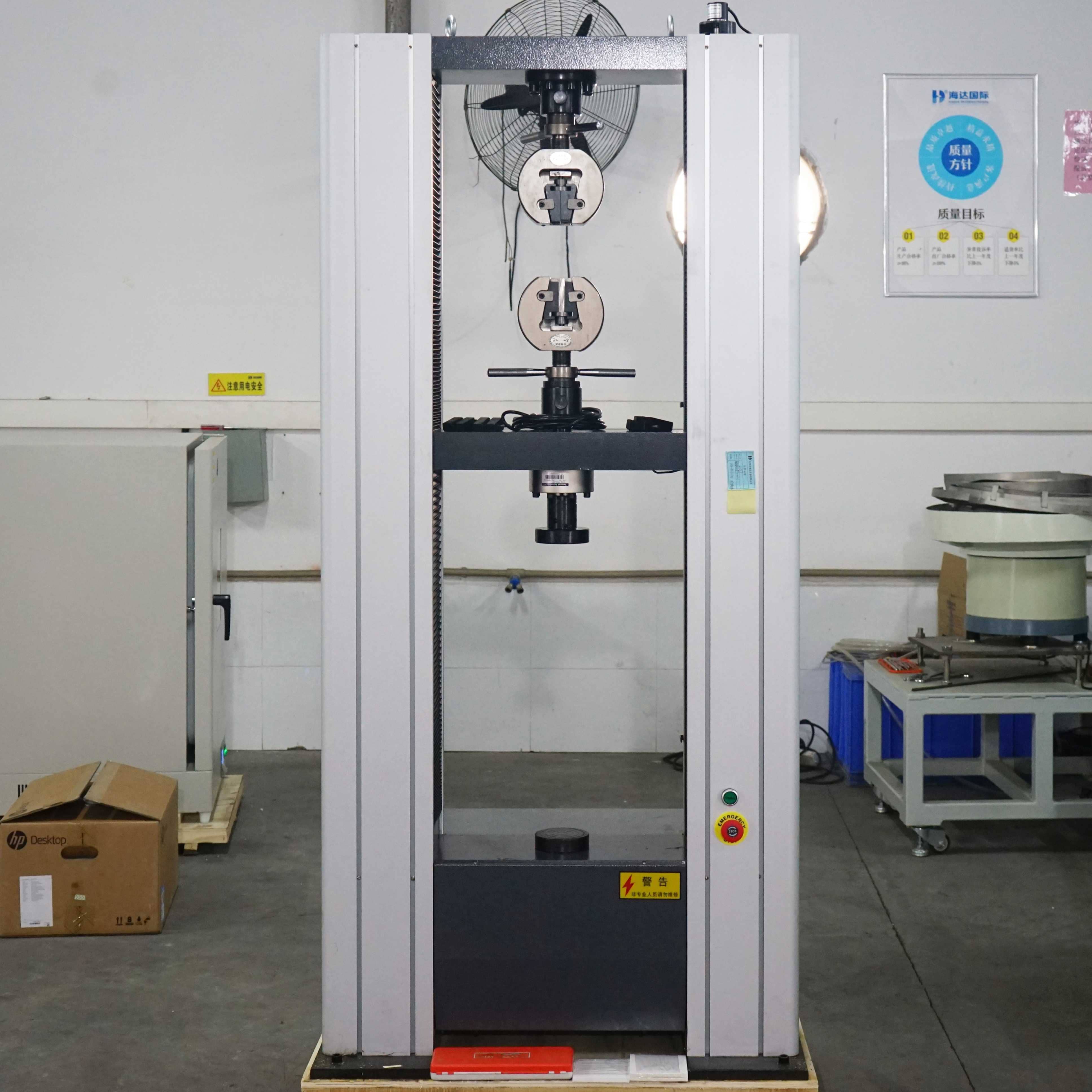

10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine
10T Universal Test Machine

10T Universal Test Machine

HUD-B612-S

Universal Test Machine is suitable for machinery manufacturing,electronic appliances,automobile production,textile chemical fiber,wire and cable,packaging materials and other industries. Various tests such as tensile, compression, bending, shearing, peeling, tearing, and two-point extension (extensometers are required) are performed on materials or semi-finished products.


Specifications

Item

Specification

Max. Force

10T (100KN)

Load cell

Imported brand load cell

Control system

PC with windows 7 system

Motor

Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod

Force reading

kgf, Ibf, N, KN, T etc

Stoke

1100mm including fixture

Load cell Resolution

1/250,000

Load Precision

within ±0.5%

Test speed

0.01~300mm/min (adjustable)

Curves display

Load- elongation, Elongation-time, Time-elongation, Stress-strain

Data display

Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc

Safety features

E-Stop

Over-load protection

Upper and lower limit switches

Load sensor with automatic retreat

Details

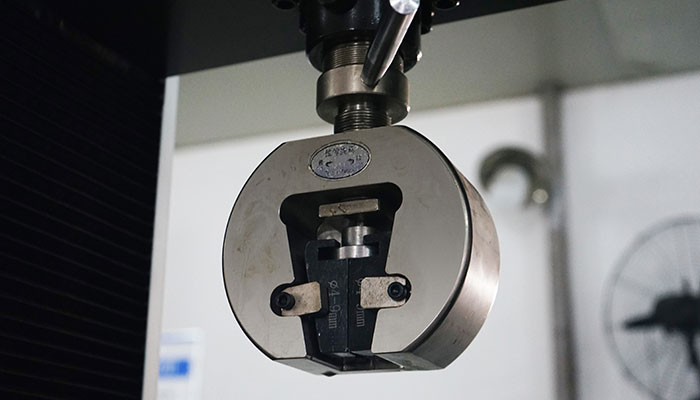

  • 001.jpg

    APPLICATIONS

    Universal Test Machine is suitable for machinery manufacturing,electronic appliances,automobile production,textile chemical fiber,wire and cable,packaging materials and other industries. Various tests such as tensile, compression, bending, shearing, peeling, tearing, and two-point extension (extensometers are required) are performed on materials or semi-finished products.

  • FEATURES

    Deformation under defined load: Test deformation under defined load of tested sample

    Load under defined deformation: Test load under defined deformation of tested sample

    Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

    This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
